Alvin’s Cables DJI Ronin 4D Combination Accessory, V Mount Plate + Counterweight

• 1 x V-Lock Battery Plate for DJI Ronin 4D, with Straight 6-Pin 1B DC-IN wide voltage input (DC 12-30V) connector.
• 1 x  Gimbal Counterweight, with 4 x Countersunk Screw and 1 x 2mm Ball-End Hex Key.

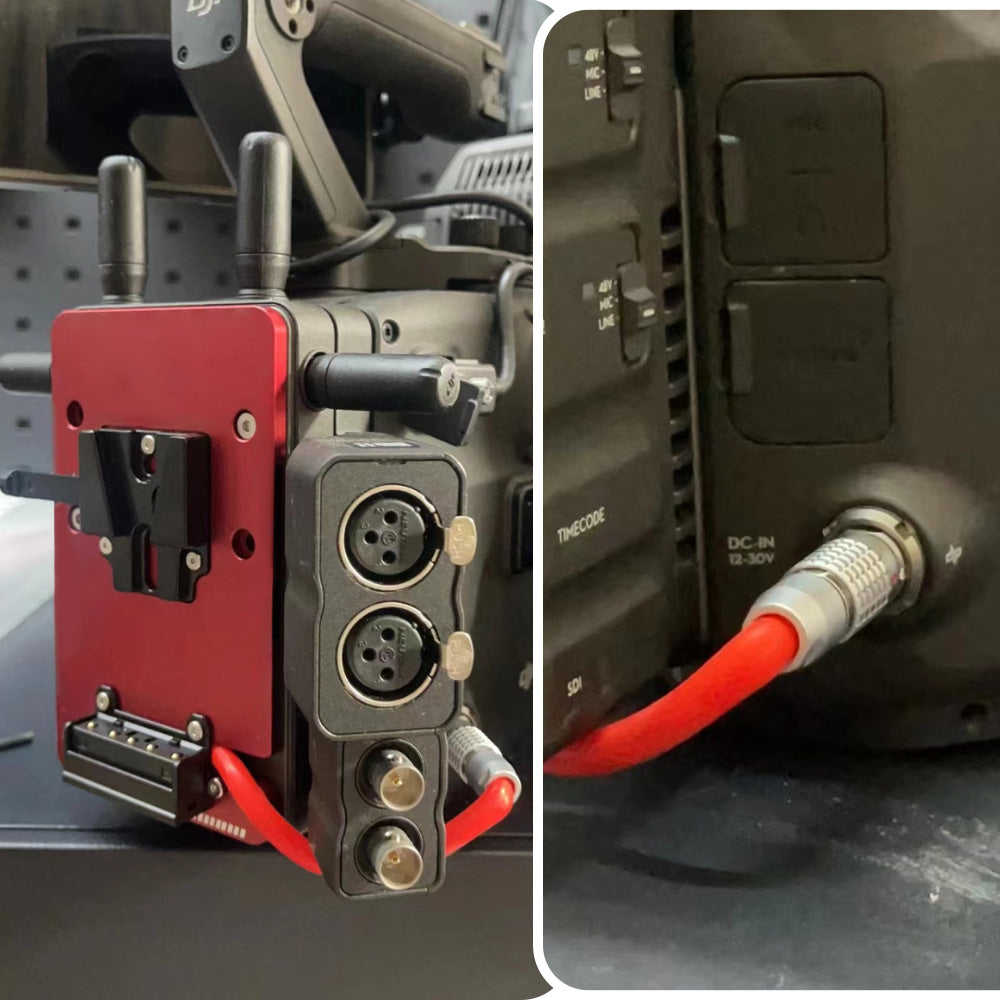

V-Lock Battery Plate

• V-Lock Battery Plate for DJI Ronin 4D, with straight 6-pin 1B DC-IN wide voltage input (DC 12-30V) connector.
• The cable is longer and is suitable for use with a DJI docking station installed. Original design with perfectly fitting screw holes. Only two screws are needed for quick installation and disassembly. Specific length power cable for Dji Ronin 4D, makes it tightly and neatly connected to the device.
• Solid yet lightweight. The battery compartment's center of gravity is shifted 15mm forward, reducing body length and making the center of gravity more compact. Unsuitable for intense shooting with fourth axis on like car shooting. Ideal for handheld and split use.
• Solid V-Lock 5-pin copper pin socket significantly enhances the current-carrying capacity. It supports 14.8V/26V V-mount batteries, best with 26V high-voltage V-mount battery (25.2V - 29.6V).
• When using a 14.8V V-mount battery, it is recommended to use a battery that can continuously supply more than 15 amps. This means that at 12V, it should provide more than 180W of power. When the voltage drops to 13.5V, the battery should be replaced; otherwise, the z-axis startup may cause a power outage.
• Packing list: V-Lock Battery Plate for DJI Ronin 4D x 1, M4 screw x 2, M2.5 screw x2, large wrench x1, small wrench x1, plastic battery flanks x1 (used together to make the battery stronger, install as needed).

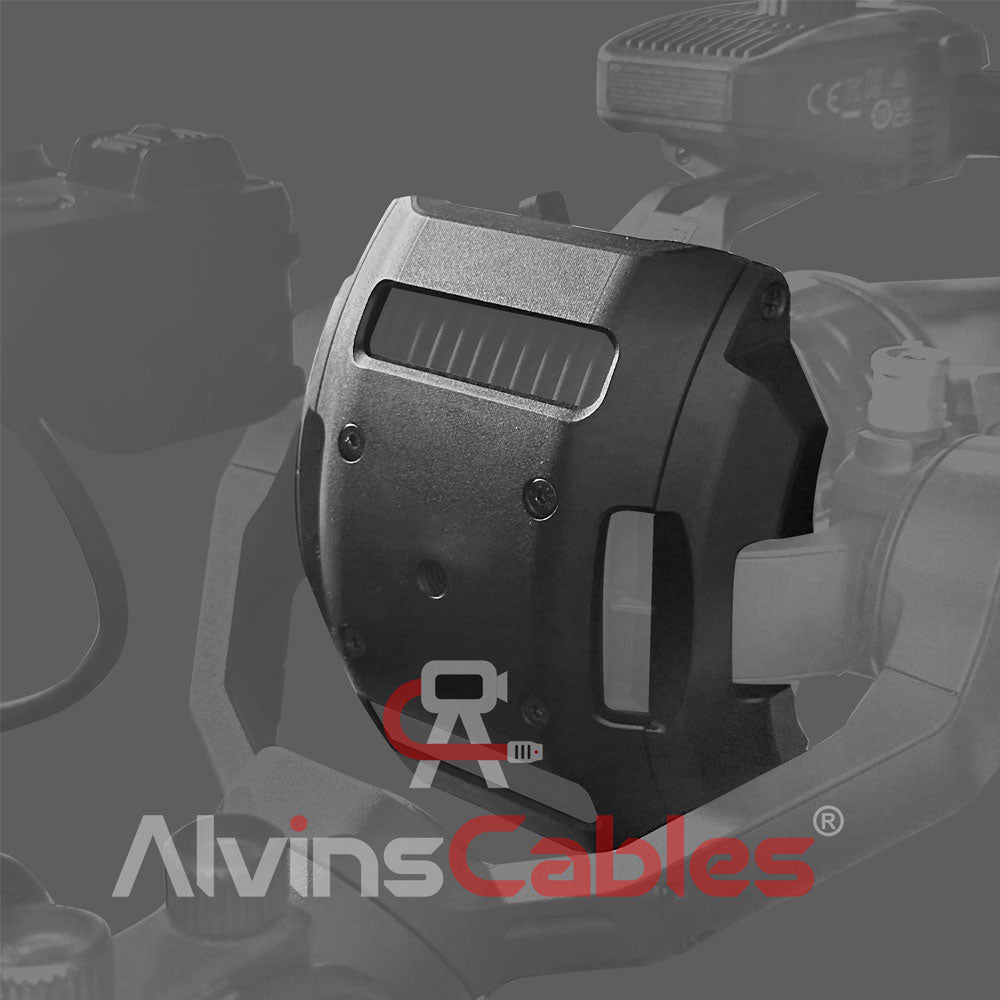

Counterweight

• When equipped with heavy lenses, this counterweight can be used to adjust the balance on the tilt axis.
• Compatible with DJI Ronin 4D, DJI Zenmuse X9-6K, DJI Zenmuse X9-8K.
• Package included: 1 x Gimbal Counterweight; 4 x Countersunk Screw; 1 x 2mm Ball-End Hex Key.
• Weight: 320g.
